2023 CANYON LUX WORLD CUP 7 MOUNTAIN BIKE

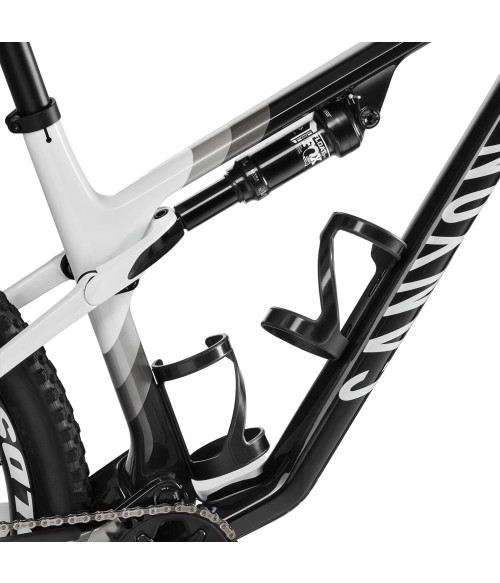

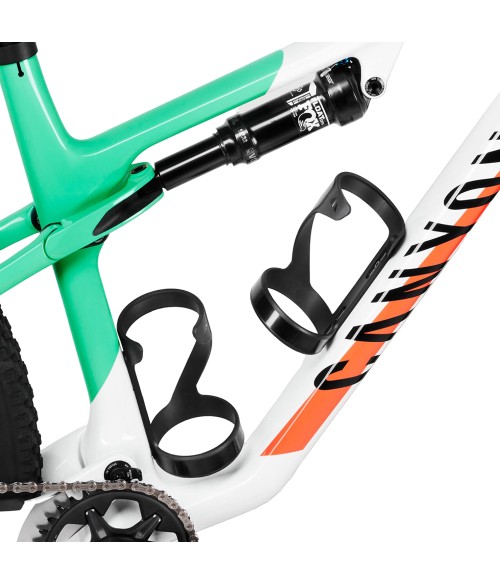

Stay hydrated
All Lux World Cup CF models have space for mounting two large bottles – even on the smallest bikes in size XS. So you can keep pushing the pace lap after lap.
Integrated cable routing
Routing brake and shifting cables and lines from the handlebar through the frame creates a super-clean look and keeps your bike running smoother by protecting everything from the elements. And on the Lux, we’ve taken one step further – by routing them directly through the headset. They leave the frame through the rear triangle, not under the bottom bracket like on a typical design, meaning the bike collects less dirt and stays lighter in muddy conditions. All little details that add up to take seconds off your time.
Impact Protection Unit 2.0
Our latest IPU – short for Impact Protection Unit – is perfectly integrated into the frame at the headset and protects the top tube from over-rotating handlebars in the event of a crash. The system doesn’t affect the bike’s manoeuvrability – you can still turn the bars far enough to nail the tightest switchbacks on the course.
SPECIFICATION :
| Frame | Canyon Lux WC CF Axle dimension: 12x148 mm Material: Carbon (CF) |
|---|---|
| Rear Shock | FOX Float DPS Performance Elite Remote |
| Suspension Fork | FOX 32 Step-Cast Performance Elite Remote Axle dimension: 15x110 mm Stanchion Diameter: 32 mm Travel: 100 mm Fork steer tube diameter: 1 1/8" - 1,5" |
| Rear Derailleur | Shimano DEORE XT M8100 Cage length: long |
| Shift Lever | Shimano DEORE XT M8100 |
| Cassette | Shimano DEORE XT M8100 Number of sprockets: 12 |
| Crank | Shimano DEORE XT M8120 Number of chainrings: 1 |
| Bottom bracket | Shimano Pressfit BB71 Bottom bracket standard: PF 89,5/92 |
| Chain | Shimano CN-M8100 12s |
| Disc Brake | Shimano Deore XT M8100 |
| Disc Brake | Shimano XT M8110 |
| Brake Rotor | Shimano DEORE XT MT800 Size: 180 mm |
| Brake Rotor | Shimano DEORE XT MT800 Size: 160 mm |
| Wheel | Reynolds TR309c XC Axle dimension: 15x110 mm Rotor mount: Center Lock Inner width: 30 mm Wheelsize: 29" Rim material: Aluminium |
| Wheel | Reynolds TR289c XC, S12 Axle dimension: 12x148 mm Rotor mount: Center Lock Wheelsize: 29" Rim material: Aluminium |
| Tyre | MAXXIS Ikon Exo 2.35" Width: 2.35" |
| Thru Axle | Canyon Quixle Thru Axle Axle dimension: 12x148 mm |
| Stem | Race Face Ride Fork steer tube diameter: 1 1/8" - 1 1/4" |
| Handlebar | Race Face Ride Rise Clamping diameter: 31,8 mm Width: 740 mm |
| Grips | Ergon GA20 |
| Saddle | Ergon SR10 Pro Sport |
| Seatpost | Race Face Ride Clamp diameter: 30,9 mm Material: Aluminium (AL) |
| Light | Reflector Set |
| Pedals | None included |
| Manuals and Accessories | Canyon Small Box |
| Manuals and Accessories | Canyon Small Box |
| Manuals and Accessories | Quick Start Guide |
Create unlimited custom tabs and add any product detail, module, widget, design or HTML. Also possible to create custom tab layout using layout builder
2023 Canyon Lux World Cup 7 Mountain Bike
- Product Code: CY754453
2023 CANYON LUX WORLD CUP 7 MOUNTAIN BIKE
Stay hydrated
All Lux World Cup CF models have space for mounting two large bottles – even on the smallest bikes in size XS. So you can keep pushing the pace lap after lap.
Integrated cable routing
Routing brake and shifting cables and lines from the handlebar through the frame creates a super-clean look and keeps your bike running smoother by protecting everything from the elements. And on the Lux, we’ve taken one step further – by routing them directly through the headset. They leave the frame through the rear triangle, not under the bottom bracket like on a typical design, meaning the bike collects less dirt and stays lighter in muddy conditions. All little details that add up to take seconds off your time.
Impact Protection Unit 2.0
Our latest IPU – short for Impact Protection Unit – is perfectly integrated into the frame at the headset and protects the top tube from over-rotating handlebars in the event of a crash. The system doesn’t affect the bike’s manoeuvrability – you can still turn the bars far enough to nail the tightest switchbacks on the course.
SPECIFICATION :
| Frame | Canyon Lux WC CF Axle dimension: 12x148 mm Material: Carbon (CF) |
|---|---|
| Rear Shock | FOX Float DPS Performance Elite Remote |
| Suspension Fork | FOX 32 Step-Cast Performance Elite Remote Axle dimension: 15x110 mm Stanchion Diameter: 32 mm Travel: 100 mm Fork steer tube diameter: 1 1/8" - 1,5" |
| Rear Derailleur | Shimano DEORE XT M8100 Cage length: long |
| Shift Lever | Shimano DEORE XT M8100 |
| Cassette | Shimano DEORE XT M8100 Number of sprockets: 12 |
| Crank | Shimano DEORE XT M8120 Number of chainrings: 1 |
| Bottom bracket | Shimano Pressfit BB71 Bottom bracket standard: PF 89,5/92 |
| Chain | Shimano CN-M8100 12s |
| Disc Brake | Shimano Deore XT M8100 |
| Disc Brake | Shimano XT M8110 |
| Brake Rotor | Shimano DEORE XT MT800 Size: 180 mm |
| Brake Rotor | Shimano DEORE XT MT800 Size: 160 mm |
| Wheel | Reynolds TR309c XC Axle dimension: 15x110 mm Rotor mount: Center Lock Inner width: 30 mm Wheelsize: 29" Rim material: Aluminium |
| Wheel | Reynolds TR289c XC, S12 Axle dimension: 12x148 mm Rotor mount: Center Lock Wheelsize: 29" Rim material: Aluminium |
| Tyre | MAXXIS Ikon Exo 2.35" Width: 2.35" |
| Thru Axle | Canyon Quixle Thru Axle Axle dimension: 12x148 mm |
| Stem | Race Face Ride Fork steer tube diameter: 1 1/8" - 1 1/4" |
| Handlebar | Race Face Ride Rise Clamping diameter: 31,8 mm Width: 740 mm |
| Grips | Ergon GA20 |
| Saddle | Ergon SR10 Pro Sport |
| Seatpost | Race Face Ride Clamp diameter: 30,9 mm Material: Aluminium (AL) |
| Light | Reflector Set |
| Pedals | None included |
| Manuals and Accessories | Canyon Small Box |
| Manuals and Accessories | Canyon Small Box |
| Manuals and Accessories | Quick Start Guide |
- Brand: Canyon
- Product Code: CY754453
- Availability: In Stock
$2,350.00
