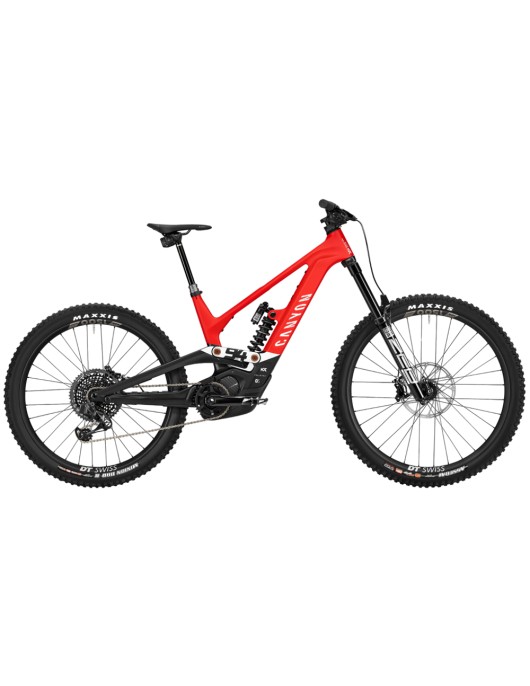

2023 Canyon Torque:ON CF Roczen Mountain Bike

2023 CANYON TORQUE:ON CF ROCZEN MOUNTAIN BIKE

True Gravity Frame

Inspired by Downhill MTB and Motocross design, this full carbon frame features true gravity geometry and bombproof Category 5 strength to make it our toughest and most capable e-MTB ever. The low slung, responsive carbon chassis delivers on point handling so you can rail every turn and boost every jump.

Innovative Hydration Solution

A low slung gravity focussed frame is no place for a conventional water bottle and cage. But sending it can be thirsty work so we've integrated a sleek 650 ml water bottle behind the headtube.

Ken Roczen Signature Artwork

Full moto! The signature colourway of motocross superstar Ken Roczen screams speed and style. From the rocker design inspired by Ken's iconic 'Number 94' all the way through to the deep red colourway - this bike already looks fast standing still and rides even faster out on the trails.

More Miles. More Stoke.

We’ve equipped the Torque:ON with one of the biggest (and smartest) power plants in the world. Our Canyon-developed 720 and 900 Wh batteries boost your mileage and stoke factor by 15 to 42% respectively over standard full-size batteries. Less charging, more shredding.

SPECIFICATION :

Frame	Canyon Torque [ON] CF Axle dimension: 12x148 mm Material: Carbon (CF)
Rear Shock	Rock Shox Super Deluxe Coil Ultimate
Suspension Fork	Rock Shox Zeb Ultimate RC2 Axle dimension: 15x110 mm Stanchion Diameter: 38 mm Travel: 180 mm Fork steer tube diameter: 1 1/8" - 1,5" Offset: 44 mm
Battery	SRAM Powerpack
Motor	Shimano Steps EP8 Motor High-torque motor. Maximum torque: 85 Nm. 3 app-tunable support modes: Eco, Trail, Boost. Class 1. Max pedal assistance speed up to 20 mph.
Rear Derailleur	SRAM X01 Eagle AXS
Battery	Canyon BT002 Standard battery for Sizes M-XL. 900Wh only compatible with frame sizes M-XL.
Chainguard	Canyon EP1189-01 Chain Guide Nut
Chainguard	Canyon GP0397-01 Chainguide
Chainguard	Canyon EP1539-01 Chain Guide
Shift Lever	SRAM Eagle AXS
Cassette	SRAM XG-1295 Number of sprockets: 12
Crank	Shimano STEPS HOLLOWTECH e-MTB crank arms
Chain	SRAM X01 Eagle 12-speed
Chainring	Canyon EP1110-01 Chainring 34T
Disc Brake	SRAM Matchmaker Clamp
Disc Brake	SRAM Code RSC
Disc Brake	SRAM Code RSC
Brake Rotor	SRAM Centerline Size: 203 mm
Brake Rotor	SRAM Centerline Size: 220 mm
Wheel	DT Swiss HFR1500 Axle dimension: 15x110 mm Rotor mount: IS 6-bolt Wheelsize: 29"
Wheel	DT Swiss HFR1500 Rotor mount: IS 6-bolt Wheelsize: 27.5"
Tyre	Maxxis Minion DHR II 27,5" x 2.60 WT Width: 2.6"
Tyre	Maxxis Assegai 3C MaxxGrip Width: 2,5"
Thru Axle	Canyon Quixle Thru Axle Axle dimension: 12x148 mm
Stem	Canyon:ON ST0031 Canyon E-MTB stem. Length: 45 mm Fork steer tube diameter: 1 1/8" Clamping diameter: 35,0 mm
Handlebar	Handlebar HB0057 Clamping diameter: 35,0 mm Width: 800 mm Rise: 30 mm
Grips	Canyon Lock-On
Saddle	Fizik Gravita Alpaca X5
Seatpost	RockShox Reverb AXS Clamp diameter: 30,9 mm Material: Aluminium (AL)
Light	Reflector Set
Battery Charger	Canyon BC001
Trekking & City Pedals	Iridium VP-536
Manuals and Accessories	Canyon Small Box
Manuals and Accessories	Wrench Tool 15mm
Manuals and Accessories	Canyon Smallbox
Manuals and Accessories	Quick Start Guide 034-V02
