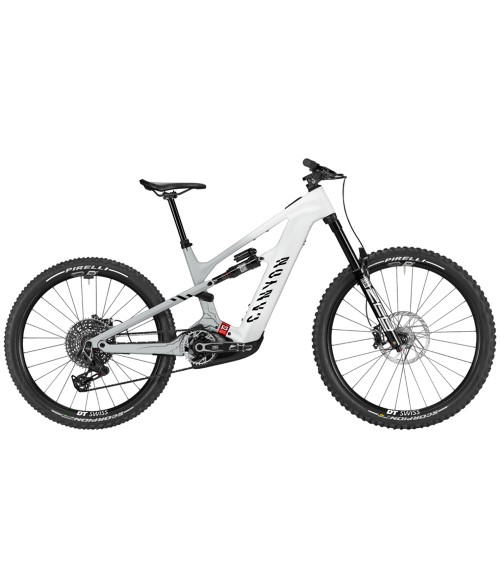

2023 CANYON STRIVE:ON CFR LTD MOUNTAIN BIKE

Unmatched CFR frame for e-bike enduro racing

Canyon Factory Racing is our commitment to pushing the limit. While our racers ride all out to shave seconds on the trail, our designers and engineers take feedback and innovate to offer every possible advantage. The result: each CFR frame is built with the highest quality carbon fibres and sets the bar for weight, durability, and cutting-edge performance.

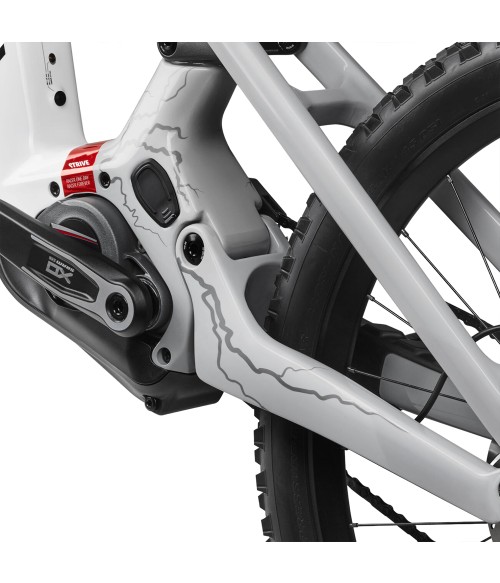

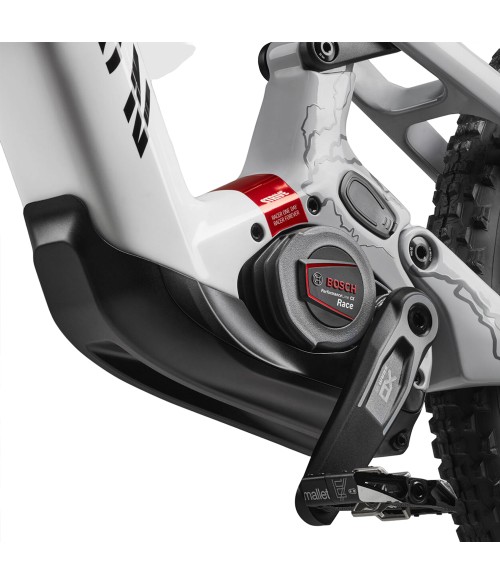

Reach full power with the Bosch CX Race motor

The Bosch Performance Line CX Race motor is the favourite of e-enduro racers thanks to its 400% pedal assist and standard-setting 600 watts of peak power. Power delivery is smooth through every pedal stroke all the way up to 120 rpm and right up to the 25 km/h limit without tailing off. It weighs 150 grams lighter than the standard CX motor.

Long-range integrated battery options

Whether you choose the lighter weight 625 Wh battery or the longer range 750 Wh version, every Bosch PowerTube battery is compact and delivers long-lasting power in a minimalist design. Seamlessly integrated into the Strive:ON frame, the battery can be charged within the bike or quickly removed and swapped out for uninterrupted riding.

Limited Fabien Barel artwork

Designed together with DH and Enduro racing legend Fabien Barel, this limited-edition artwork features understated colours that are brought to life by red chrome details and lightning bolt artwork. Not to mention a special Barel quote: “Racer one day. Racer forever.”

SPECIFICATION :

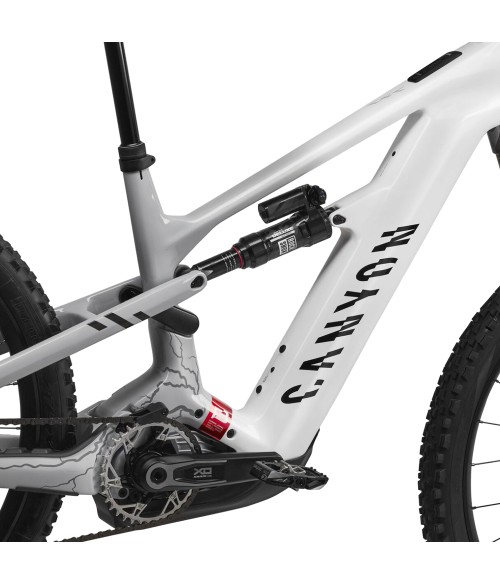

Frame	Canyon Strive:ON Axle dimension: 12x148 mm Material: Carbon (CF)
Rear Shock	RockShox Super Deluxe Ultimate RC2T
Suspension Fork	RockShox Zeb Ultimate RC2 Axle dimension: 15x110 mm Stanchion Diameter: 38 mm Travel: 170 mm Fork steer tube diameter: 1 1/8" - 1,5" Offset: 44 mm
Battery	Depending on your selected configuration.
Battery	SRAM Powerpack
Rear Derailleur	SRAM X0 Eagle AXS Transmission
Chainguard	Canyon GP0437-01 Chain guide
Shift Lever	SRAM AXS Pod Ultimate
Cassette	SRAM XS 1295 Number of sprockets: 12
Crank	SRAM Direct Mount Eagle Transmission Chain Ring 36T
Chain	SRAM XO T-Type
Disc Brake	SRAM Matchmaker Clamp
Disc Brake	SRAM Code RSC
Disc Brake	SRAM Code RSC
Brake Rotor	SRAM HS2 Size: 200 mm
Brake Rotor	SRAM HS2 Size: 220 mm
Wheel	DT Swiss HX1501 15x110 Axle dimension: 15x110 mm Rotor mount: IS 6-bolt Inner width: 30 mm Wheelsize: 29" Rim material: Aluminium
Wheel	DT Swiss HX1501 12x148 Axle dimension: 12x148 mm Rotor mount: IS 6-bolt Free hub: Shimano Hub Technology: Spline Inner width: 30 mm Wheelsize: 27.5" Rim material: Aluminium
Tyre	Pirelli Scorpion Enduro M
Tyre	Pirelli Scorpion Enduro R
Thru Axle	Canyon GP0255-01 Thru Axle Axle dimension: 12x148 mm
Stem	Canyon G5 Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails. Fork steer tube diameter: 1 1/8" Clamping diameter: 31,8 mm
Handlebar	Canyon G5 G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability. Clamping diameter: 31,8 mm Width: 780 mm Rise: 30 mm
Grips	Canyon G5
Saddle	ERGON SM10 EMTB
Seatpost	Canyon G5 Clamp diameter: 30,9 mm Material: Aluminium (AL)
Light	Reflector Set
Battery Charger	Bosch 4A
Trekking & City Pedals	Iridium VP-536
Manuals and Accessories	Canyon Small Box
Manuals and Accessories	Wrench Tool 15mm
Manuals and Accessories	Canyon Short allen key
Manuals and Accessories	Canyon Smallbox
Manuals and Accessories	Quick Start Guide
