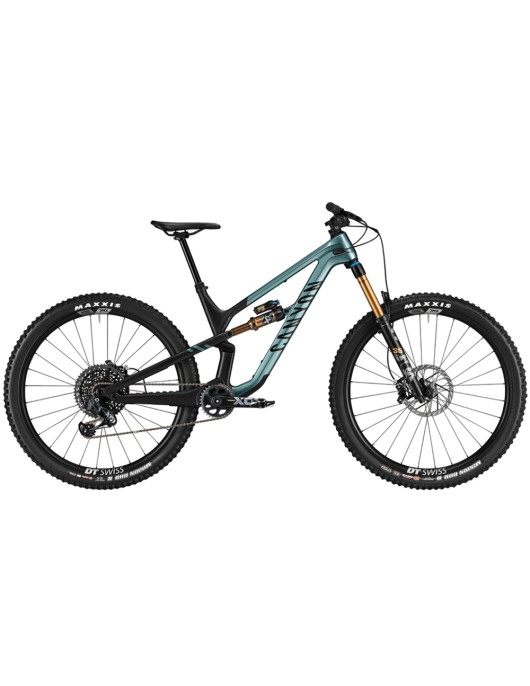

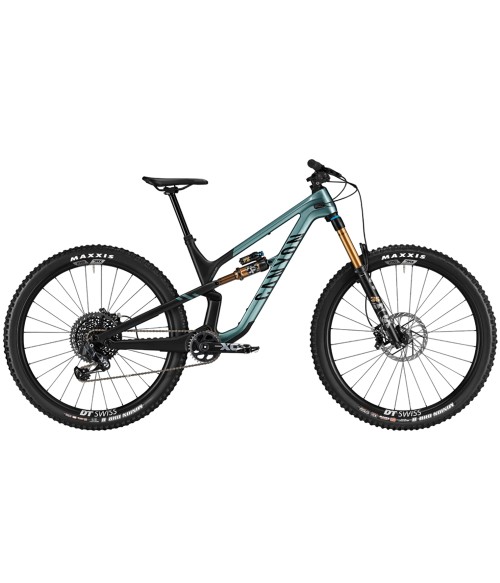

2023 Canyon Spectral 29 CFR Mountain Bike

2023 CANYON SPECTRAL 29 CFR MOUNTAIN BIKE

CFR – The Best of the Best

By using premium carbon materials and an optimised layup, the frame of the Spectral CFR is a massive 300 g lighter than the already light Spectral CF frame, with no drop-off in stiffness. Even the paintwork is 50 g lighter. This is our statement in the trail bike market.

Flip Chip

Maximum stability and control in corners or more ground clearance for technical climbing? What if you could have both? Using the Flip Chip on the rear suspension linkage, riders can change the bike’s geometry to suit their riding style within a matter of seconds. Head tube and seat tube angle adjustment: 0.5 degrees. Bottom bracket height adjustment: 8 mm.

Clever Cable Routing

An integrated plastic cable channel inside the frame eliminates annoying cable rattle and makes tune-ups and cable swaps quick and painless. Simply thread brake and shifter cables into the chainstay, push them through, and they automatically come out the front of the front triangle.

Double sealed bearings

Industrial-grade, double sealed bearings keep the frame’s pivot points protected for seasons worth of riding through mud and dirt. The dual seals keep out moisture and muck so you can spend more time on trail and less time in the workshop.

SPECIFICATION :

Frame	Canyon Spectral CFR The Spectral CFR uses the most advanced carbon materials and layup to save 300 g over the CF models, with no loss of stiffness. Axle dimension: 12x148 mm Material: Carbon (CF)

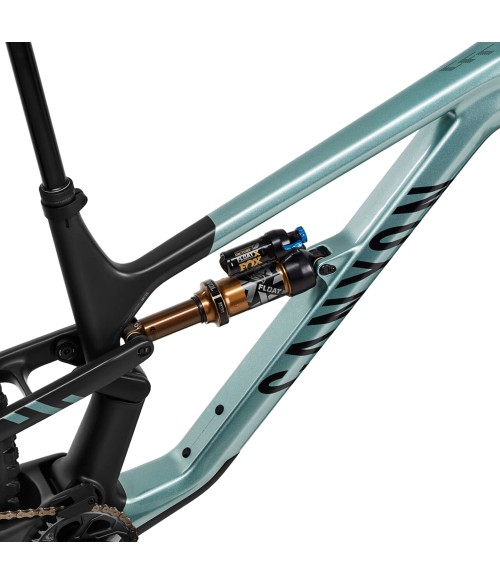

Rear Shock	FOX Float X Factory EVOL
Suspension Fork	FOX 36 Factory Grip2 Axle dimension: 15x110 mm Stanchion Diameter: 36 mm Travel: 160 mm Fork steer tube diameter: 1 1/8" - 1,5" Offset: 44 mm
Rear Derailleur	FOX 36 Factory Grip2 Axle dimension: 15x110 mm Stanchion Diameter: 36 mm Travel: 160 mm Fork steer tube diameter: 1 1/8" - 1,5" Offset: 44 mm
Battery	SRAM Powerpack
Chainguard	Canyon EP1266-01 ISCG05 Plate
Chainguard	Canyon GP0293-02
Shift Lever	SRAM AXS Pod Ultimate
Cassette	SRAM XS 1295 Number of sprockets: 12
Crank	SRAM XO T-Type Number of chainrings: 1
Bottom bracket	SRAM BSA DUB Bottom bracket standard: BSA 73
Chain	SRAM XO T-Type
Disc Brake	SRAM Matchmaker Clamp
Disc Brake	SRAM Code RSC
Disc Brake	SRAM Code RSC
Brake Rotor	SRAM HS2 Size: 200 mm
Wheel	DT Swiss XMC 1501 Axle dimension: 15x110 mm Rotor mount: IS 6-bolt Rim height: 25 mm Inner width: 30 mm Wheelsize: 29"
Wheel	DT Swiss XMC 1501 Axle dimension: 12x148 mm Rotor mount: IS 6-bolt Rim height: 25 mm Inner width: 30 mm Wheelsize: 29"
Tyre	Maxxis Minion DHR II Wheelsize: 29
Tyre	Maxxis Minion DHRII 3C MaxxTerra EXO+ 2,4x29 Width: 2,4"
Thru Axle	Canyon Quixle Thru Axle Axle dimension: 12x148 mm
Stem	Canyon G5 Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails. Fork steer tube diameter: 1 1/8" Clamping diameter: 31,8 mm
Handlebar	Canyon G5 G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability. Clamping diameter: 31,8 mm Width: 780 mm Rise: 30 mm
Grips	Canyon G5
Saddle	Ergon SM10 Enduro Comp
Seatpost	Canyon G5 Clamp diameter: 30,9 mm Material: Aluminium (AL)
Light	Reflector Set
Pedals	None included
Manuals and Accessories	Canyon Smallbox
Manuals and Accessories	Canyon Small Box
Manuals and Accessories	Canyon Quick Start Guide

Create unlimited custom tabs and add any product detail, module, widget, design or HTML. Also possible to create custom tab layout using layout builder

2023 Canyon Spectral 29 CFR Mountain Bike

Product Code: CY754477
