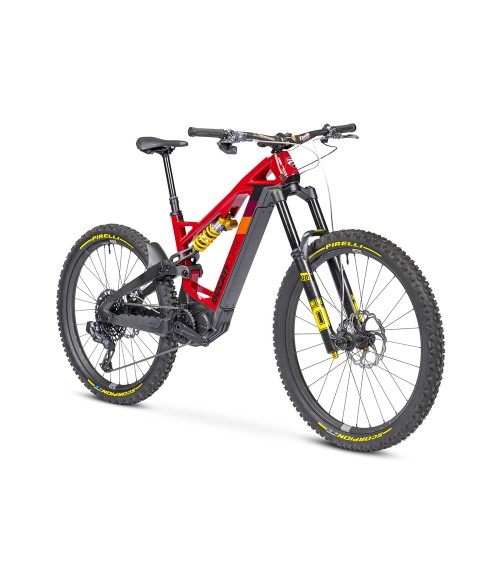

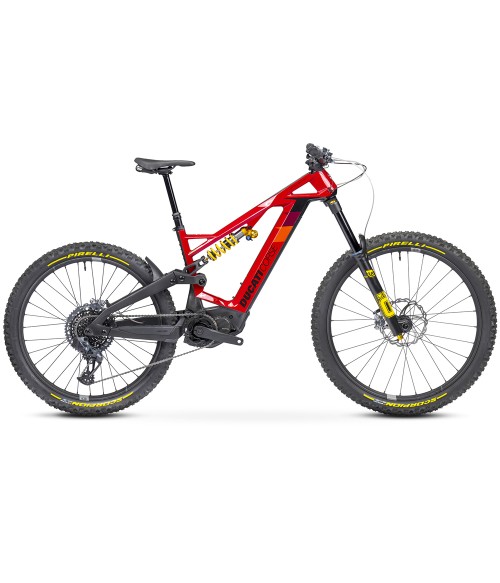

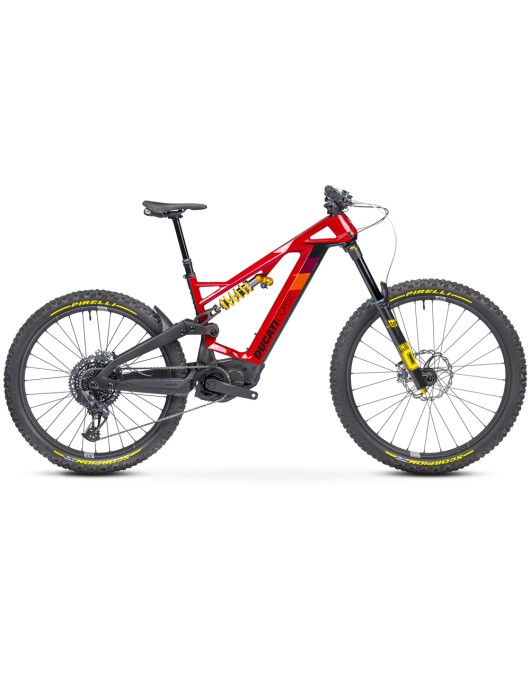

2023 DUCATI POWERSTAGE RR MOUNTAIN BIKE

The frame has undergone comprehensive testing on the most arduous routes trails with just one goal – to ensure maximum performance in the enduro arena. Choices as to the arrangement of the carbon layers and the types of fibre weave are the result of FEM (Finite Element Analysis), which allows for identification of the points under most stress and that require increased support. Greater attention is paid to stiffness in the head tube area, the rear triangle and the motor area, reinforced with two ‘T-Ribs’. The long tube is characterized by carbon fiber of multiple degrees of thicknesses in order to better disperse the tensions on the roughest sections. The asymmetrical lower chaynstays as well as presenting an attractive design is designed to improve responsiveness and uphill traction.

Fine details

The frame also features many other high-quality, functional details, such as the internal cable routing, protected by a steering lock system (T-Stopper), bearings on the joints, in direct contact with the carbon with no need for bushing, and a very quick removal system of the integrated battery.

KEY FEATURE

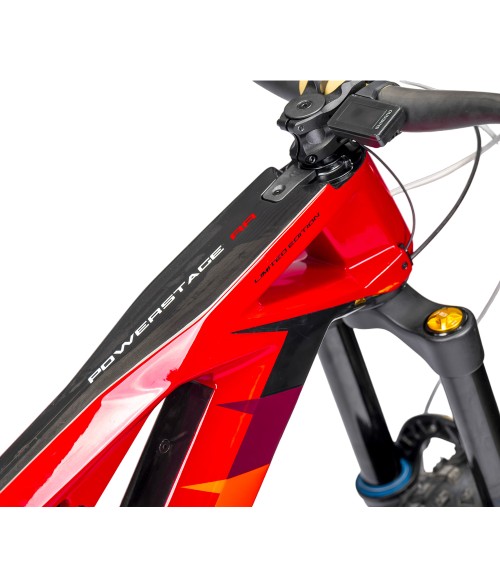

• FRAME Thok UD Full carbon fiber, headtube tapered 1.8 with HS stopper, internal cable routing

• MOTOR Shimano Steps EP801 (250 Watt – 85 Nm - 2.7 kg)

• BATTERY Shimano – 630 Wh integrated

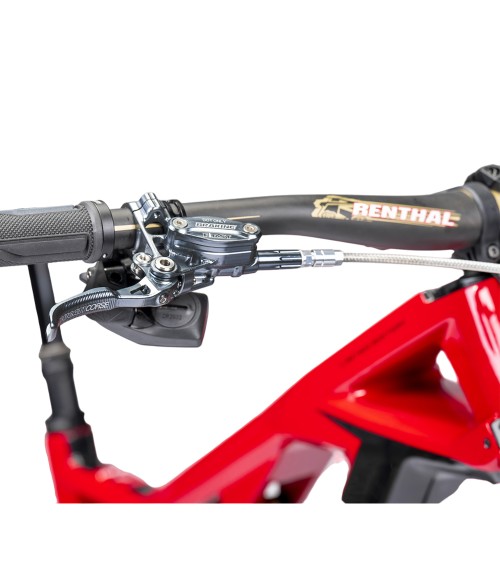

• BRAKES BRAKING - First, 2 pistons calipter with 203mm rotors and 3mm thickness

• REAR DERAILLEUR SRAM - GX Eagle AXS Lunar 12s

SPECIFICATION :

FRAME	Thok UD Full carbon fiber, headtube tapered 1.8 with HS stopper, internal cable routing

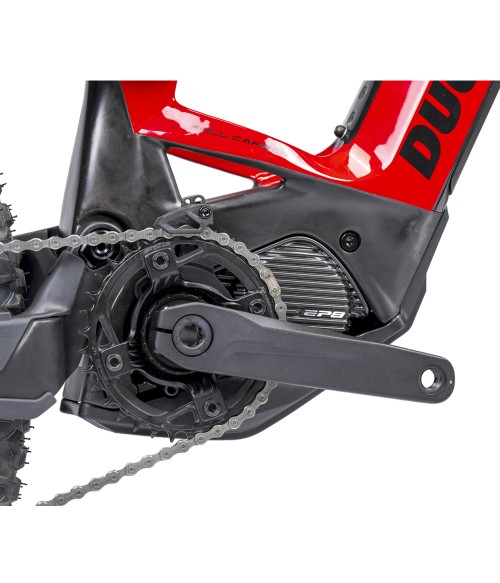

Motor	Shimano Steps EP801 (250 Watt – 85 Nm - 2.7 kg)

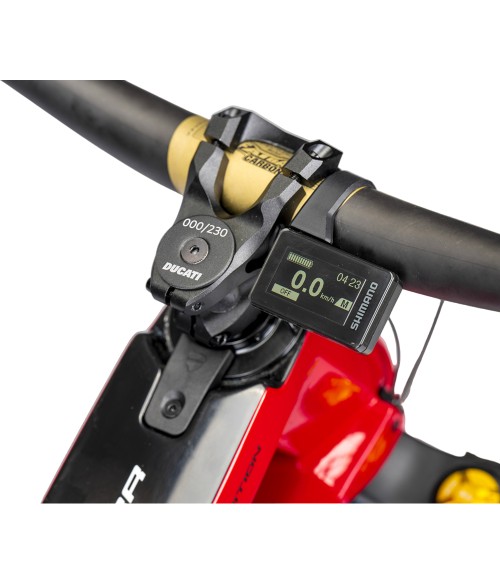

Display	Shimano - Display SC-ENG600 LCD display with remote control
Battery	Shimano - 630 Wh integrated
Brakes	Braking - First, 2 Piston Caliper with 203mm rotor and 3mm thikness

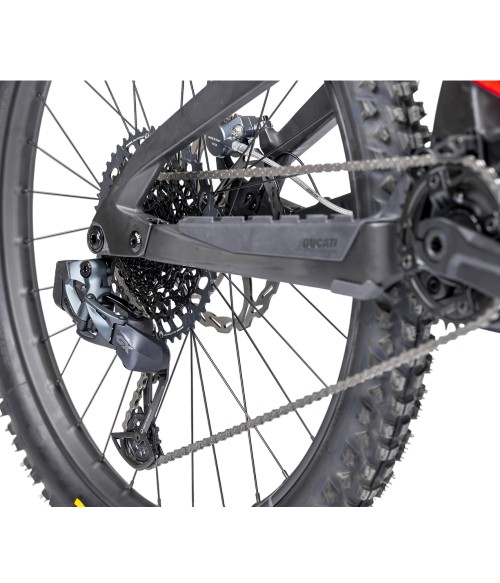

Rear Derailleur	SRAM - GX Eagle AXS Lunar 12s
Shift Lever	SRAM - X - GX Eagle AXS Controller
Crank	SRAM - X - Glide 12s 10-50T
Stem	Ducati - CNC Alloy 35mm, 45 mm length
Handlebar	Renthal Carbon 35 mm, rise 20mm, 800 mm width
Wheelset	Crankbrothers - Synthesis - Carbon 29" x 31 mm, 27.5" x 35 mm
Tires	Front: Pirelli Scorpion Enduro S, TR, SmartGrip, HyperWall 29"x 2.6 Rear: Pirelli Scorpion E-MTB S, TR, SmartGrip, HyperWall, 27.5" x 2.6
Seatpost	Dropper post micro height adjustable with remote control (M-150, L/XL-170 mm)
Saddle	FIZIK - Alpaca Tool Carrier (integrated mutitoo & Co2)
Pedals	Alloy Pedals

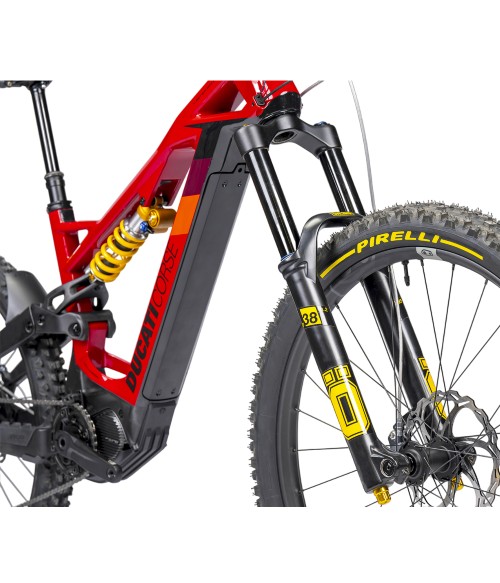

Fork	Ohlins - RXF 38m.2 Air, Boost - 29", 180 mm of travel,HS/LS compression and rebound adjust

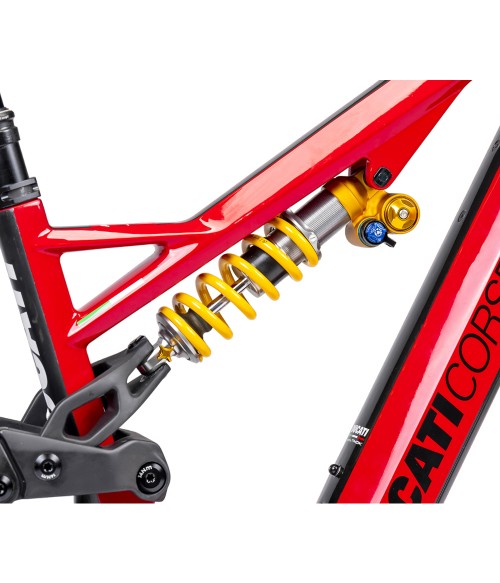

Rear Shock	Ohlins - TTX22M m.2 Coil - 170mm travel custom tuned Ducati, metric 230 x 65 mm
Sizes	M - L - XL

Create unlimited custom tabs and add any product detail, module, widget, design or HTML. Also possible to create custom tab layout using layout builder

2023 Ducati Powerstage RR Mountain Bike

Product Code: DC857110
