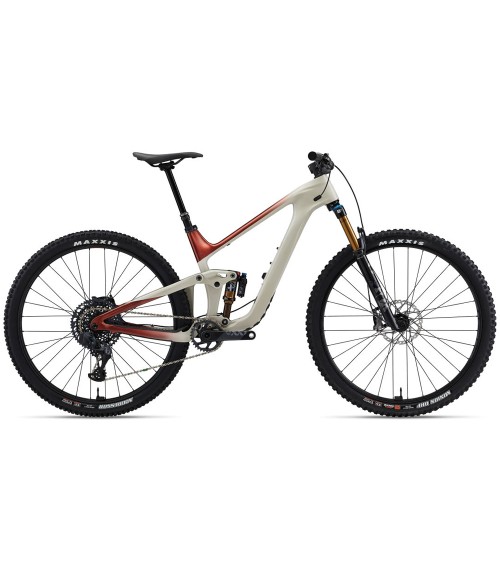

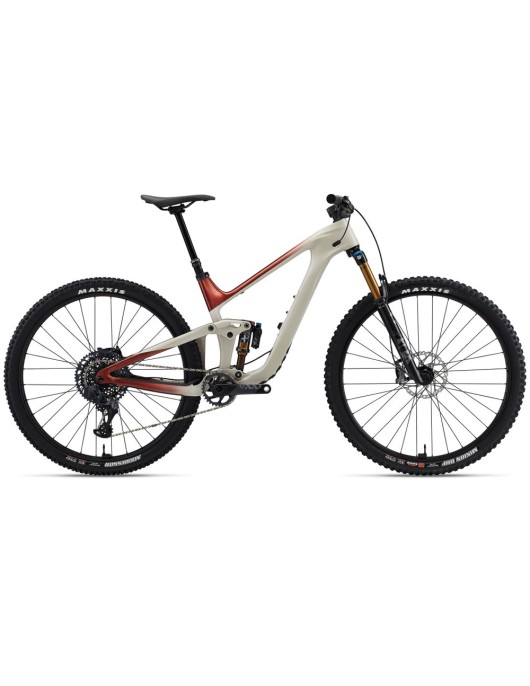

2023 Giant Trance Advanced Pro 29 0 Mountain Bike

2023 GIANT TRANCE ADVANCED PRO 29 0 MOUNTAIN BIKE

KEY PERFORMANCE FACTORS

Adjustable frame geometry

New flip chip feature lets you change the head tube and seat tube angles, as well as the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style.

29er confidence and control

Larger 29-inch diameter wheels optimized to roll over rough terrain with balance and stability, giving you the momentum to tackle technical climbs and the confidence to fly on fast, rugged singletrack descents.

Progressive trail design

Lightweight Advanced-grade composite frameset features a longer reach and steeper seat tube for aggressive trail riding and improved climbing capabilities. Updated Maestro rear suspension features 120mm of rear wheel travel paired with a 130mm fork up front.

SPECIFICATION

Sizes	S, M, L, XL
Colours	Pulp Gray / Terracotta / Black Chrome
Frame	Advanced-Grade Composite front and rear triangles, 120mm Maestro suspension, flip chip, 12x148mm thru-axle
Fork	Fox 34 Factory, 130mm, GRIP 2 damper, Boost 15x110 Kabolt, 44mm offset, custom tuned for Giant
Shock	Fox Float X Factory, lockout, 185/50, custom tuned for Giant
Handlebar	Giant Contact SLR Trail Integrated, Advanced Composite, 5-position adjustable, 800mm (760mm minimum cut width), 7/8/9° Back Sweep adjust system, meets DH test standard, GPS mount included
Grips	Giant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm
Stem	Giant Contact SLR Trail Integrated, Advanced Composite, 5-position adjustable, 40/45/50mm Reach, +3°/0°/-3° Adjust System
Seatpost	TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 525mm XL: 170-200mm travel / 30.9 x 525mm
Saddle	Giant Romero SL
Pedals	N/A
Shifters	SRAM XX1 Eagle AXS Rocker Paddle, 1x12
Front Derailleur	N/A
Rear Derailleur	SRAM XX1 Eagle AXS
Brakes	Shimano XTR BR-MT9120, hydraulic, Shimano RT-66 rotors [F]180mm, [R]180mm
Brake Levers	Shimano XTR BL-M9120
Cassette	SRAM XG 1295, 12-52
Chain	SRAM X01 Eagle
Crankset	SRAM XX1 Eagle DUB SL, 30t S:165mm, M:170mm, L:170mm, XL:170mm
Bottom Bracket	SRAM DUB, press fit
Rims	Zipp 3ZERO MOTO 29 carbon
Hubs	Zipp 3ZERO MOTO 29 carbon
Spokes	Zipp 3ZERO MOTO 29 carbon
Tires	[F] Maxxis Minion DHF 29x2.5 WT, 3C MaxxTerra, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 TPI, 3C Max Terra, EXO, TR
Extras	tubeless prepared, 2.6" max tire size, 34t max chainring size, MRP V3 Carbon chain guide
Weight	The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
