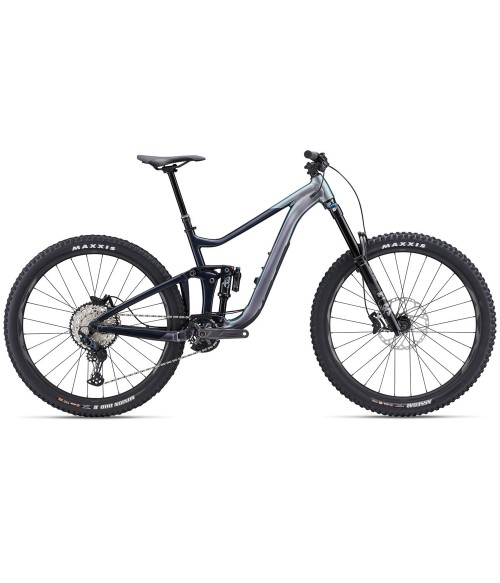

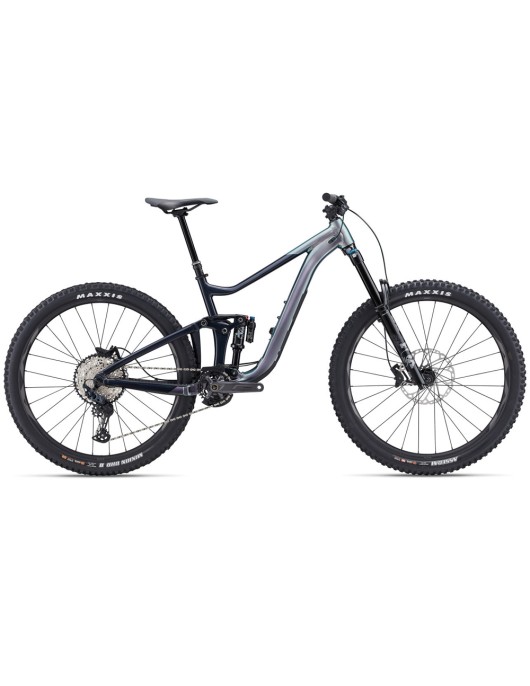

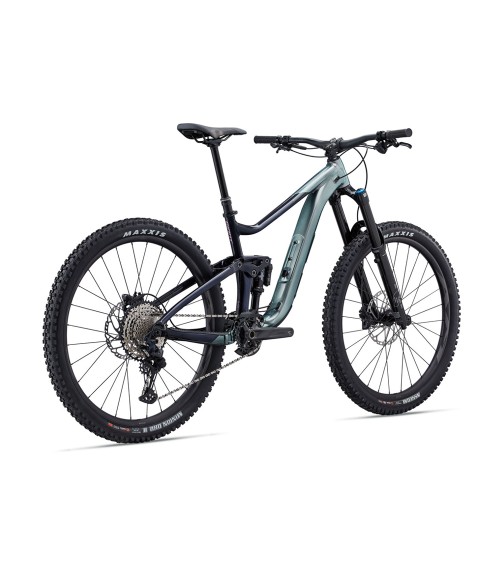

2023 GIANT REIGN 1 MOUNTAIN BIKE

KEY PERFORMANCE FACTORS

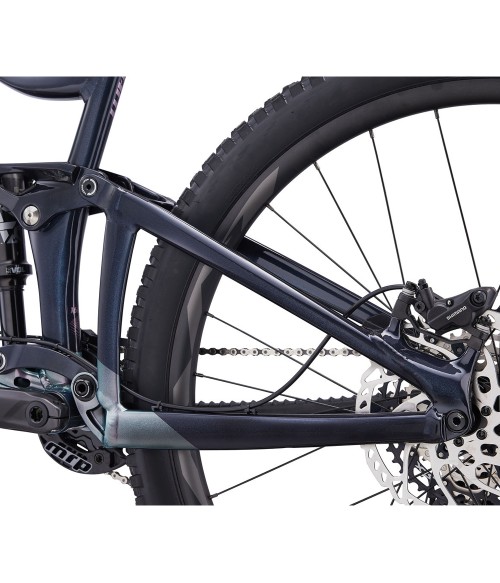

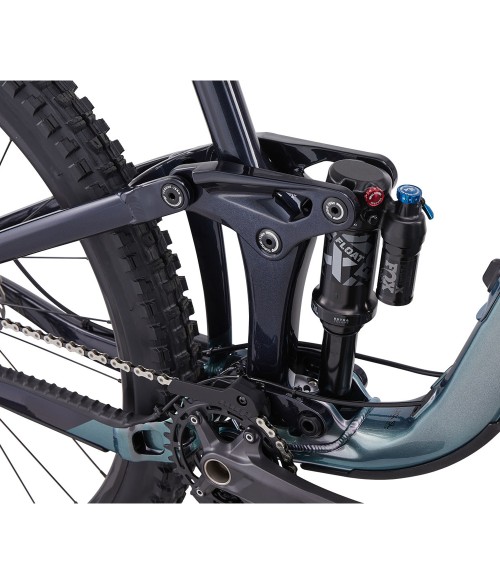

Race-bred suspension

A new Maestro rear suspension system with longer travel (160mm) was developed and tested under the extreme conditions of Enduro World Series races. The trunnion mount shock has a longer stroke (62.5mm compared to 60mm on the previous generation). And the Advanced Forged Composite upper rocker arm adds stiffness and lowers overall weight.

Adjustable enduro geometry

New flip chip technology lets you switch between three settings depending on the terrain. You can select a 63.5, 63.9 or 64.2-degree head angle and corresponding 78.3, 78.7 or 79-degree seat tube angle, resulting in a 35, 30 or 25mm bottom bracket drop (size medium) to fine-tune handling for trail conditions, riding style and rear-wheel size.

Rear wheel options

Riders can choose either a 29- or 27.5-inch rear wheel, paired with a 29-inch front wheel. The larger 29-inch option improves stability and roll-over capabilities, while the 27.5 option delivers a more agile, snappier feel. It’s a quick and easy change to adjust the bike’s handling and feel.

SPECIFICATION

Sizes	M, L, XL
Colours	Gloss Airglow/Cold Night
Frame	ALUXX SL-Grade Aluminum front and rear triangles, Advanced Forged Composite rocker link, 160mm Maestro suspension, OverDrive (1 1/8" - 1 1/2"), BB89.5, UDH, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, integrated downtube storage, 2.5" max tyre size, 36t max chainring size, 3M tailgate protector, downtube and chainstay protection

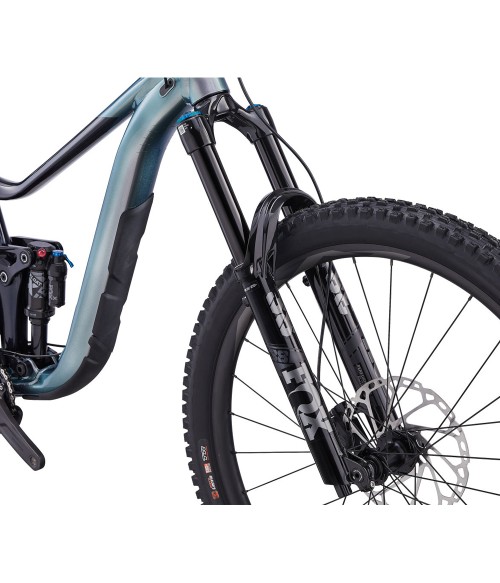

Fork	Fox 38 Performance Elite, 170mm, GRIP 2 damper, 15x110 Kabolt X, 44mm offset

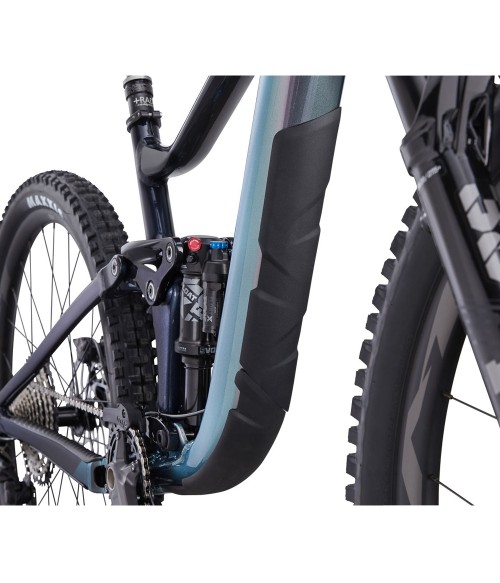

Shock	Fox Float X Performance Elite, 205/62.5mm

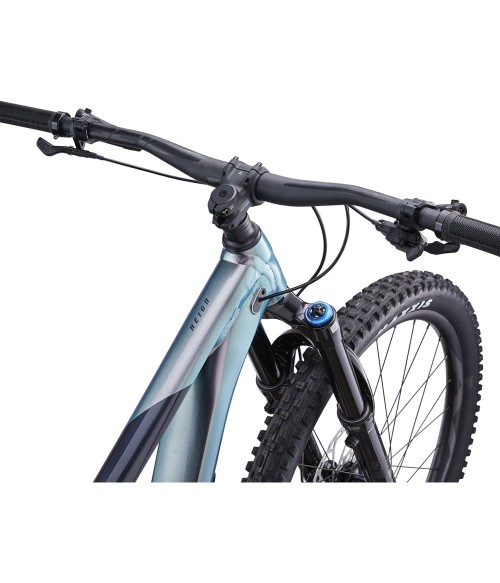

Handlebar	Giant Contact SL TR35, 800x35mm, 20mm rise
Grips	Giant Tactal Pro Single M:120mm, L:130mm, XL:130mm
Stem	Giant Contact SL 35 M:40mm, L:40mm, XL:40mm
Seatpost	TranzX travel-adjustable dropper, remote M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 525mm XL: 170-200mm travel / 30.9 x 525mm
Saddle	Giant Romero
Pedals	N/A
Shifters	Shimano SLX SL-M7100, 1x12
Front Derailleur	N/A

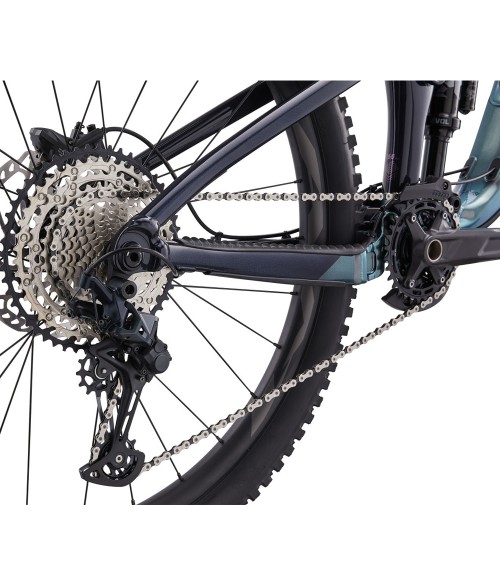

Rear Derailleur	Shimano SLX RD-M7100
Brakes	Shimano Deore BR-M6120, hydraulic, Shimano RT-66 rotors [F]220mm, [R]203mm
Brake Levers	Shimano Deore BL-M6100
Cassette	Shimano SLX M7100, 10x-51T
Chain	KMC X12, w/ Missing Link
Crankset	Shimano MT512, 32t, 55mm chainline M:170mm, L:170mm, XL:170mm
Bottom Bracket	Shimano, press fit
Rims	Giant AM 29, ETRTO: 30-622, tubeless ready (TL tape and valve included), alloy
Hubs	Alloy, sealed [F] Giant, loose ball bearing, 6-bolt [R] Giant, cartridge bearing, Micro Spline driver, 6-bolt
Spokes	Sapim Leader
Tyres	[F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 29x2.4 WT, 3C MaxxTerra , DD, TR tubeless

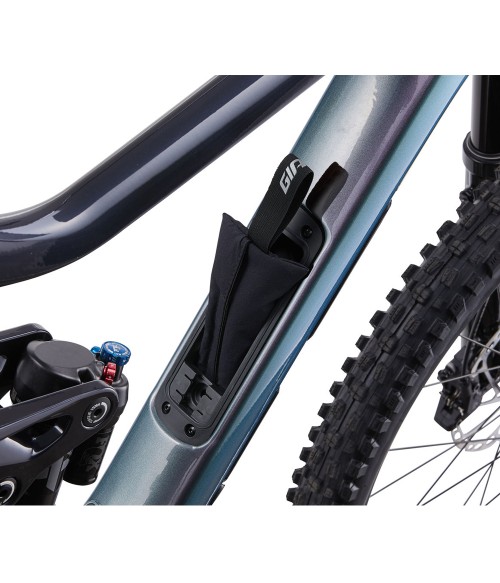

Extras	Factory tubeless set up. Tubeless kit (2x60ml Giant sealant, valve tool, instruction) 2.5" max tyre size, 36t max chainring size, MRP AMG CS chain guide, 3M tailgate protector, downtube and chainstay protection, internal DT storage bag
Weight	The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
