Product Description

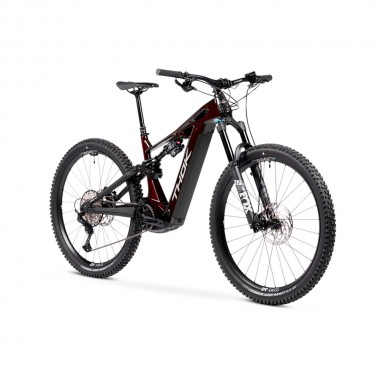

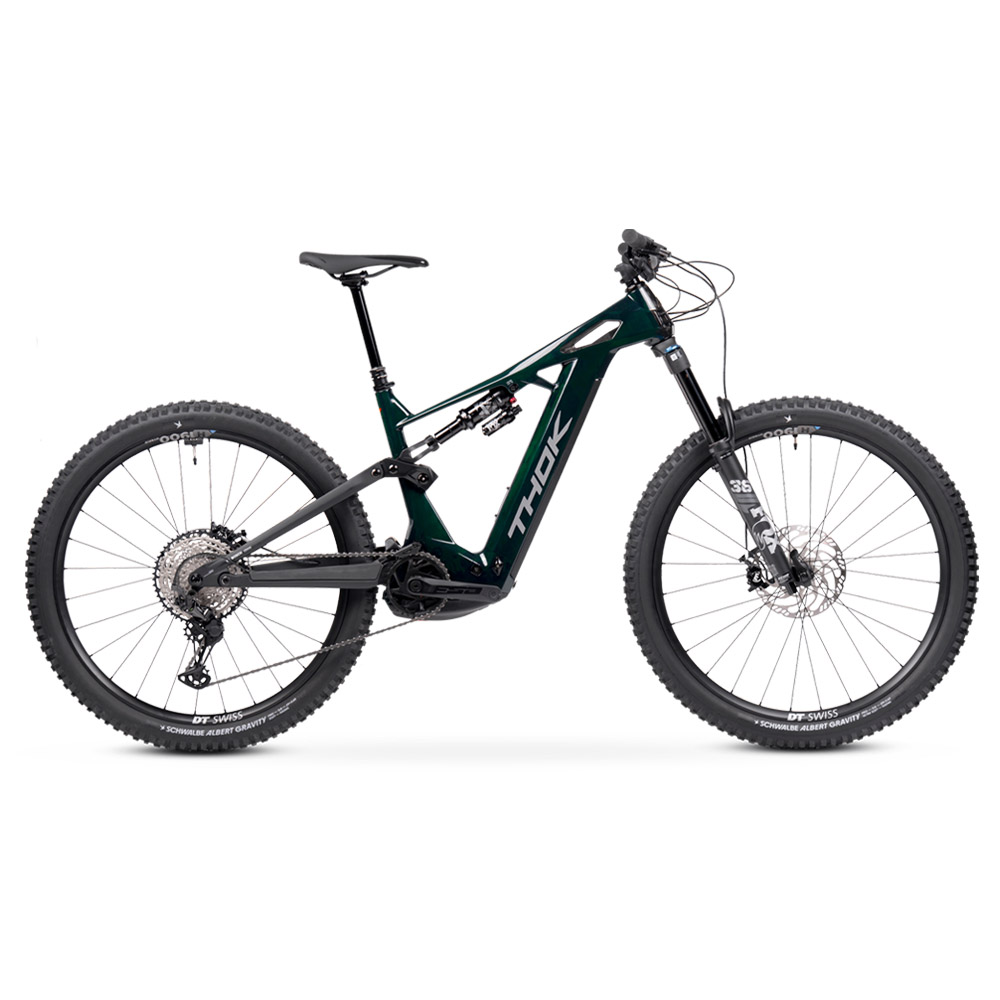

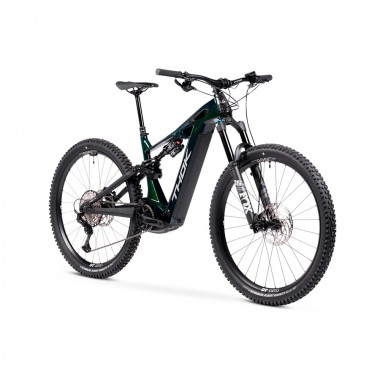

2026 THOK TP4 S MOUNTAIN BIKE
The TP4-S is the bridge between all-mountain and enduro.
Engineered, designed and tested in Italy like the rest of the THOK range, it was created to conquer the most extreme climbs, while maintaining the downhill performance attitude typical of the brand’s DNA.
It features a UD carbon frame (travel: 160mm front / 150mm rear), Bosch Performance Line CX motor, 800 Wh modular battery, FOX Float 36 Performance fork, FOX Float X shock, Magura MT5 brakes, 29” wheels (compatible with mullet setup), and the use of Flip-Chip technology, which allows adjustment of the seat tube and head tube angles, and consequently, the bike’s behavior, adapting it to different riding styles and terrains.
NOMEN OMEN
TP4 stands for THOK Project Four and it is the name given to the project by the R&D department when it started this study. “S” indicates the premium components it’s equipped wiyh. The TP4 is the world’s first carbon full-suspended e-bike for which 3D printing technology was used to create the first functional prototype.
SPECIFICATION
| FRAME | THOK – Unidirectional Full Carbon Fiber, headtube tapered 1.5, 29” geometry with flipchip, 27,5” compatibility, integrated down tube battery, UDH Hanger tecnology, enclosed internal cable, fully sealed cartridge bearing, 150 mm travel. |
|---|---|
| SIZES | S – M – L – XL |
| MOTOR & BATTERY | BOSCH – Performance Line CX – Internal BOSCH Powetube battery 800 Wh (compatibility with PT600 and PT400) – *optional Bosch Powermore range extender 250Wh. |
| DISPLAY & SWITCH CONTROL | BOSCH – Purion200 – 1,6” LCD color display. |
| FORK | FOX – 36 Float Performance, P-S E-Optimized, 29″ Boost, GRIP, 160 mm travel, 44mm offset, 1.5 tapered, 3POS. |
| SEAT CLAMP | THOK custom – CNC alloy 34,9 mm. |
| REAR SHOCK | FOX – Float X, 2 Pos Adj, THOK Custom tuned, 210×55. |
| STEM | THOK – Alloy with front clamp oversize 35 mm, ext 50 mm. |
| HEADSET | ACROSS – BlockLock 135°. |
| HANDLEBAR | THOK – Alloy 6061 oversize 35 mm DB, rise 20 mm, width 780mm. |
| GRIPS | THOK – Lock-On grips. |
| SADDLE | THOK – Fit in hollow Cr.Mo rail. |
| SEAT POST | THOK – dropper post micro height adjustable, remote control (S/125 mm – M/170 mm- L/XL 200 mm). |
| DISK BRAKES | MAGURA – MT5, 4 piston, MDR-C 203mm rotors. |
| REAR DERAILLEUR | SHIMANO – XT 12S. |
| SHIFT LEVER | SHIMANO – 12S. |
| CASSETTE | SHIMANO – 12S 10-51T. |
| CHAIN | SHIMANO – 12S. |
| CRANKSET & CHAINRING | FSA 165 mm with chainring 34T. |
| FRONT WHEEL | DT-SWISS – H1900 Alloy, 29″x 30 mm, 15×110. |
| REAR WHEEL | DT-SWISS – H1900 Alloy, 29″x 30 mm, 12×148, MS freehub body. |
| FRONT TIRE | SCHWALBE – Albert Gravity Pro 29″ x 2.6 Ultra Soft TLR. |
| REAR TIRE | SCHWALBE – Albert Gravity Pro 29″ x 2.6 Soft TLR. |
| PEDALS | Flat polyethylene pedals. |
