Product Description

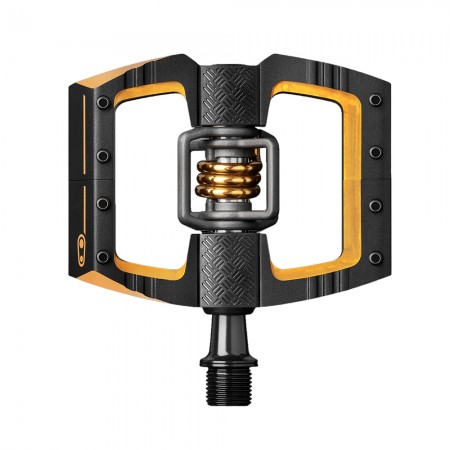

CRANKBROTHERS MALLET DH 11 SET
FEATURES
• Titanium wings to reduce weight
• Dual chamfered edges to reduce rock-strikes
• Exclusive double-anodized black and gold colorway
• Concave platform for secure foothold
• 8 adjustable pins per side for grip
• Integrated traction pad technology to optimize the shoe/pedal interface
• Ribbed body for better traction when unclipped
• 57mm q-factor for stability at speed
• 4-sided entry / superior mud shedding
• Customizable float & release angle
• Premium bearings & double seal system
• Owners Manual
SPECIFICATIONS
| BODY MATERIAL | 6061-T6 Aluminum |
|---|---|
| BODY DIMS (L X W) | 100mm x 78mm |
| WING MATERIAL | 17-4PH Stainless |
| SPINDLE LENGTH | 57mm |
| TRACTION PINS | 8 adjustable per side |
| PIN LENGTH | 8mm |
| INNER BEARING TYPE | Igus LL-glide bearing |
| OUTER BEARING TYPE | Enduro MAX cartridge bearing |
| ENDCAP | Hex alloy |
| SPINDLE MATERIAL | Forged SCM 435 Chromoly Steel |
| SPRING MATERIAL | 300 series stainless steel |
| MAX RIDER WEIGHT | No restriction |
| WEIGHT | 445g per pair |
| INCLUDED CLEAT TYPE | 15° / 20° Standard Release, 6° Float |
| CLEAT NOTICE | Third-party cleats are not approved for use with Crankbrothers pedal systems. Using non-Crankbrothers cleats can reduce pedal lifespan and voids the pedal warranty. |
| WARRANTY | 5 years |
