2023 THOK Gram-Rc Mountain Bike

0 reviews

$ 6,200.00

Brand: THOK

Product Code: TK80711

Availability: In Stock

Viewed 700 times

Available Options

Size

Color

Qty

Add to wishlist
Add to compare

Tags: THOK

Categories Cart Account Search Recent View

Description
Reviews (0)

Product Description

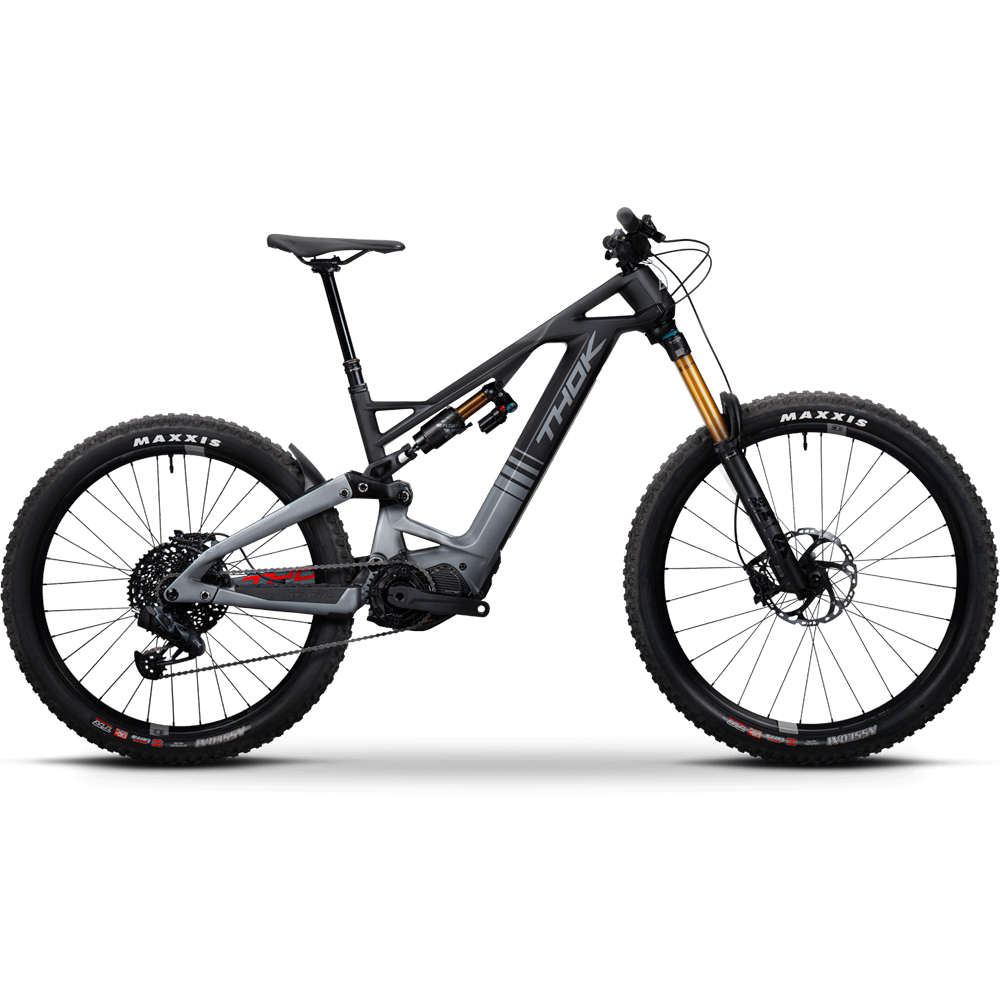

2023 THOK GRAM-RC MOUNTAIN BIKE

E-Enduro Customised Geometry

By using carbon, Gram did not need to make any structural compromises. Its geometry was developed with a “zero limits” mindset. New angles, new lines, new shapes, excellence. From riders for e-riders: the lines of the frame are the combination of all our know-how, our many years of experience as passionate riders, our pursuit of adventure and freedom. With the Gram you will ride on undreamed-of trails, Enduro will no longer have any limits.

THOK PROGRESSIVE SYSTEM 2

The new TPS-2 suspension system designed by THOK E-Bikes increases the progressivity of the kinematics and optimises its use in Enduro.

The rear wheel travel is extremely progressive: it absorbs all types of obstacles when riding downhill and ensures maximum traction with climbs. The new full carbon rocker with symmetrical cushioning contributes to zero bending. The TPS-2 features polygonal seat-stay and asymmetrical one-piece chain-stay.

SHIMANO SYSTEM – THE CHOICE

• The progression of a motor is how it delivers assistance: Shimano does not have peaks. It feels like a well-trained leg

• How elastic a motor is is determined by the transition between the push and release phases: with Shimano it is constant and manageable

• The Q factor (the distance between the cranks) of the EP8 motor is lower: pedalling is more natural

• The EP8 is one of the lightest and least bulky motors you can find; it has a small and intuitive display, it can be customised and store parameters

• Shimano has one of the best structured assistance services in the world: always precise and responsive

• The Shimano closed system (motor, battery, software) guarantees maximum efficiency when it comes to performance and consumption

PERFORMANCE FIRST - SHIMANO EP8 CLOSED SYSTEM WITH 630 WH BATTERY

Performance is the number one priority in every THOK project. The Gram is equipped with the closed Shimano EP8 system because it guarantees maximum efficiency when it comes to performance and consumption. Tests carried out by the in-house research department have proven this, here are the results:

• the closed Shimano system, which includes drive unit, battery and software, not only ensures the best possible dialogue between the components but also facilitates troubleshooting thanks to the shared service

• the 630 Wh capacity battery was found to be the most effective for THOK-style E-Enduro use: flying down breathtaking downhill sections after riding up all kinds of climbs. In fact, it ensures lightness (compared to larger capacity bikes) and better handling (thanks to smaller overall dimensions)

• in general, the Gram’s frame geometry and kinematics perform best using the complete Shimano EP8 system with 630 Wh battery, especially when it comes to consumption

SPECIFICATION :

FRAME	THOK - Unidirectional full carbon fiber, headtube tapered 1.8, 29"/27,5" geometry, integrated down tube battery, UDH Hanger tecnology, enclosed internal cable, fully sealed cartridge bearing, 170 mm travel
FRAME SIZE	S (154 - 167cm) - M (168 - 177 cm) - L (178- 184 cm) - XL (185cm to 200)
MOTOR & BATTERY	SHIMANO EP8 - 85 Nm (250W) - integrated Shimano 630 Wh
DISPLAY & SWITCH CONTROL	SHIMANO - SC-EM800 LCD color display with remote control SC-EM800 (Eco, Trail, Boost e Power-Walk)
FORK	FOX - 38 Float Factory Kashima 29" Boost, GRIP2, 180 mm travel.
SHOCK	FOX - X2 Float Factory Kashima, 2 Pos Adj, THOK Custom tuned, 230x65
BRAKE	SHIMANO - Deore XT, 4 piston, 203mm rotors
REAR DERAILLEUR	SRAM - GX Eagle AXS
SHIFT LEVER	SRAM - GX Eagle AXS
CASSETTE	SRAM - X-Glide 12 Speed, 10-50T
CHAIN	SRAM - Eagle 12V
CRANKSET & CHAINRING	FSA 165mm - chain ring 34T
WHEELS	CRANKBROTHERS - Synthesis Alloy Ebike, front 29"x 30 mm ; rear 27.5"x 35 mm
STEAM	THOK - Alloy with front clamp oversize 35 mm, ext 37 mm
HANDLEBAR	RENTHAL - Fatbar Carbon, rise 20 mm, width 800mm
GRIPS	THOK - Lock-On grip, regular size
TIRES	MAXXIS - Assegai 29x2.6 ant. e 27.5×2.6 post. 3C / EXO+ / TR
SEAT POST	THOK dropper post micro height adjustable, remote control (S/125 mm - M/150 - L/XL 170 mm)
SADDLE	THOK Fit in hollow Cr.Mo rail
CRANK	Flat polyethylene pedals
WEIGHT	23,3kg size M without pedals
